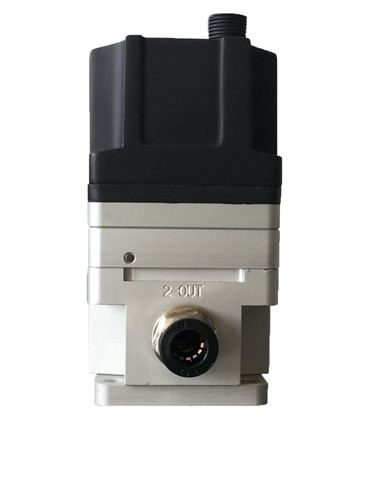

IP65 Protection Level G1/2 Thread Pneumatic Regulator

    Buy cheap IP65 Protection Level G1/2 Thread Pneumatic Regulator from wholesalers

    Buy cheap IP65 Protection Level G1/2 Thread Pneumatic Regulator from wholesalers
    • Buy cheap IP65 Protection Level G1/2 Thread Pneumatic Regulator from wholesalers

    IP65 Protection Level G1/2 Thread Pneumatic Regulator

    Ask Lasest Price
    Brand Name : POWERFLOW
    Model Number : IPR 2010
    Certification : ISO9001.
    Price : Quotation Offered by Email.
    Payment Terms : T/T
    Supply Ability : 50Nos/Week for every single Customer.
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    IP65 Protection Level G1/2 Thread Pneumatic Regulator

    IPR2020 Intelligent Pneumatic Regulator with G1/2 Thread


    1. Product Description


    IPR 2020 series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.

    ​2.Technical Datas


    Type selectionIPR 2010,2020,2030
    Min supply pressure+0.1MPa
    Max supply pressure0.2MPa /1.0MPa
    Pressure range

    0.005~0.1MPa

    0.005~0.5MPa

    0.005~0.9MPa

    Supply voltage

    Voltage:DC:24V ±10%

    Current: Below 0.12A

    Input signal

    Current-mode:DC4~20mA

    Voltage-mode:DC0-5V, DC0~10V

    Input resistance

    Current-mode: below 250Ω

    Voltage-mode: about 6.5KΩ

    Output signal

    DC1~5V load resistance:above 1KΩ

    DC4~20mA load resistance: below 250Ω

    Output accuracy : within 6%

    Linear1%F.S.
    Hysteresis0.5%F.S.
    Repeatability0.5%F.S.
    Temperature characteristic2%F.S.
    Pressure display

    2%F.S. (Accuracy)

    1/1000(Graduation)

    Ambient and Fluid Temperature0~50℃
    Protection levelIP65


    3. Out pressure/ Signal Input



    4. Dimensions


    • IPR 2010​


    • IPR 2020


    • IPR 2030


    5. Electrical and pneumatic connections


    No.Description
    1V+ (Brown)
    2In (White)
    3V- (Blue)
    4Out (Black)
    5Down Button
    6Set Button
    7Up Button
    8Pneumatic Inlet
    9Pneumatic Outlet
    10Pneumatic Exhaust

    6. Type Selection


    Note: POWERFLOW reserves the right to change specifications without notification.
