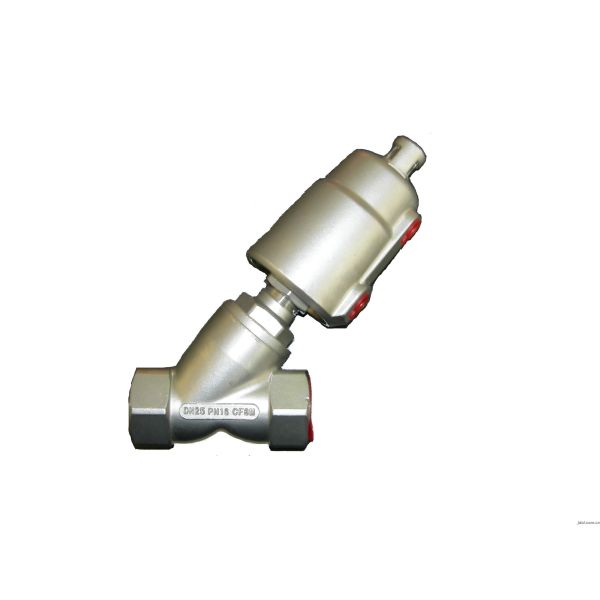

    Large Flux Stainless Steel 16 Bar Pneumatic Angle Seat Valve

    Ask Lasest Price
    Brand Name : POWERFLOW
    Model Number : 2700
    Certification : ISO9001. CE.
    Price : Quotation Offered by Email.
    Payment Terms : T/T
    Supply Ability : 50Nos/Week for every single Customer.
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    Large Flux Stainless Steel 16 Bar Pneumatic Angle Seat Valve

    2700 Series Pneumatic Angle Seat Valve with Stainless Steel Actuator and Thread Connection


    1. Features


    • Large flux, low resistance, no water-hammer
    • Y-type shape enlarged the flowing section, which cloud raise the flux by 30% and make flow more smooth
    • Super long working life
    • The stem can adjust and lubricates itself automatically

    2. Technical Data


    Actuator MaterialStainless Steel, Plastic
    Valve Body MaterialAISI 304/316
    Seal MaterialPTFE, PPL
    Working Pressure16Bar
    Working Temperature-20-180℃(PTFE); -20-220℃(PPL)
    Available SizeDN15-DN80
    Aailable ConnectionThread, Weld, Clamp, Flange
    Air Supply2.5-8Bar
    StandardDIN, SMS, ISO, IDF, RJT, 3A, etc

    3. Application


    1. Valve Body8. Down Space of Actuator
    2. Seat9. Pilot Port
    3. Stem10. Spring Set
    4. Body Seal11. Up Space of Actuator
    5. Connection Piece12. Release Hole
    6. Stem Seal13. Cap Hole
    7. Leak Hole

    4. Dimension


    ModelLT

    A

    H

    DE

    Actuator

    Size

    DN1568111331261/2'6250
    DN2075141371313/4'6250
    DN2590151741651'6250
    DN3211517.51881751&1/4'7663
    DN4011517.51901781&1/2'7663
    DN50135202152252'7663
    DN65185302522802&1/2'9680
    DN80220332803203'114100
    DN100235333003504'114100

    5. Type Selection
