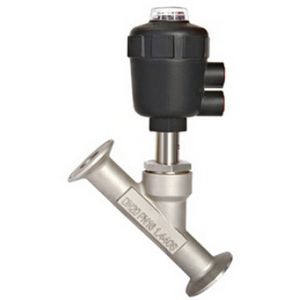

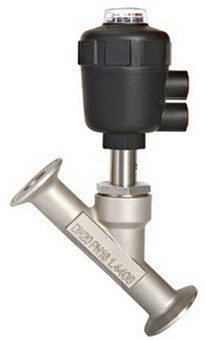

AISI 304 Plastic DN15 Pneumatic Angle Seat Valve

    Buy cheap AISI 304 Plastic DN15 Pneumatic Angle Seat Valve from wholesalers

    Buy cheap AISI 304 Plastic DN15 Pneumatic Angle Seat Valve from wholesalers
    • Buy cheap AISI 304 Plastic DN15 Pneumatic Angle Seat Valve from wholesalers

    AISI 304 Plastic DN15 Pneumatic Angle Seat Valve

    Ask Lasest Price
    Brand Name : POWERFLOW
    Model Number : 2700
    Certification : ISO9001. CE.
    Price : Quotation Offered by Email.
    Payment Terms : T/T
    Supply Ability : 50Nos/Week for every single Customer.
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    AISI 304 Plastic DN15 Pneumatic Angle Seat Valve

    2700 Series Pneumatic Angle Seat Valve with Plastic Actuator and Clamp Connection


    1. Features


    • Large flux, low resistance, no water-hammer
    • Y-type shape enlarged the flowing section, which cloud raise the flux by 30% and make flow more smooth
    • Super long working life
    • Which help the stem adjust and lubricates itself automatically

    2. Technical Data


    Actuator MaterialStainless Steel, Plastic
    Valve Body MaterialAISI 304/316
    Seal MaterialPTFE, PPL
    Working Pressure16Bar
    Working Temperature-20-180℃(PTFE); -20-220℃(PPL)
    Available SizeDN15-DN80
    Aailable ConnectionThread, Weld, Clamp, Flange
    Air Supply2.5-8Bar
    StandardDIN, SMS, ISO, IDF, RJT, 3A, etc

    3. Application


    1. Valve Body8. Down Space of Actuator
    2. Seat9. Pilot Port
    3. Stem10. Spring Set
    4. Body Seal11. Up Space of Actuator
    5. Connection Piece12. Release Hole
    6. Stem Seal13. Cap Hole
    7. Leak Hole

    4. Dimension


    ModelLdCDAH

    E

    Actuator

    Size

    DN15120152150.51801376450
    DN20140202550.51851456450
    DN25160253350.52201838063
    DN32175354050.52402108063
    DN40190384450.52502608063
    DN5021048566432030010080
    DN63210586477.533034010080
    DN6522568779138037510080

    5. Type Selection
