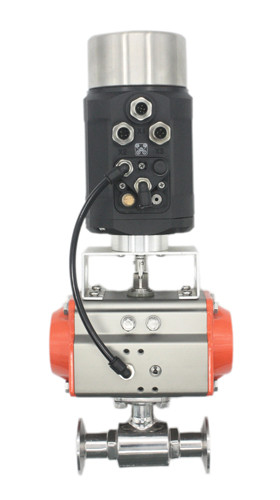

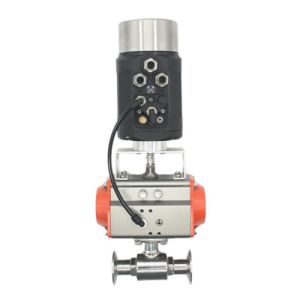

Stainless Steel M22*1.5 Electro Pneumatic Ball Valve Positioner

1600 Series Smart Electro-pneumatic Ball Valve Positioner with Feedback

1. Product Description

1600 Series compact positioner is optimized for integrated mounting with the pneumatic actuators in the process valve and is specially designed for the requirements of a explosion-proof needed process environment. The control air channel is integrated in the actuator without external tubings. The simple handling and rich additional software functions are done either on a big graphic display with keypad. The control of single or double-acting actuators is done without internal air consumption. The housing is easy to clean and features proven IP 66 protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries, etc.

2.Technical Datas

Material	PC,PA6-GF30,Stainless Steel,SI
Power supply	24V DC ±10%
Set-point signal	0/4-20mA or 0-5/10 V
Input resistance for set-point signal	240Ω at 0/4-20mA, 21KΩ at 0-5/10V
Control medium Dust concentration Particle density Pressure condensation point Oil concentration	Neutral gases, air DIN ISO 8573-1 Class 5 (<40μm particle size) Class 5 (<10mg/m3) Cass 3 (<-20°C) Class 5 (<25mg/m3)
Ambient Temperature	0-70°C
Pneumatic Connection	Plug-in hose connector G1/4(internal Φ6mm)
Electrical Connection	M12 3-pins B-coded(cable ø 4-6mm) M12 4-pins D-coded(cable ø 4-6mm) M12 5-pins A-coded(cable ø 4-6mm)
Supply Pressure	3~7 bar, specific values depending on the actuator
Air Flow Rate	17 L/min, 58 L/min(only single-acting)
Stroke Control Range	Linear 5-50mm Rotary 90°
Installation	As required, Preferably with actuator in upright position, Screw.
Protection Class	IP65
Power Consumption	<5W
Explosion Proof	Ex nA IIC T4

3. Product type selection

4. Features

Compact stainless steel design
Electrical waterproof connectors
LCD with backlight
Easy to start-up
Rich additional software functions

5. Dimension

6. Electrical connections and pneumatic connections

X1
Pin	Description	Signal type
1	Analogue signal output +	0/4 – 20 mA or 0 – 5/10 V
2	Binary signal output 1	0/24 V
3	Binary signal output 2	0/24 V
4	Binary signal input +	0-3V =“0”, 15-30V =“1”
5	Signal common GND	GND

X2(Optional for process control only)
Pin	Description	Signal type
1	Transmitter input +	+24 V
2	Transmitter signal output	4 - 20mA
3	Transmitter GND	GND

X3
Pin	Description	Signal type
1	Power supply +	+24 V
2	Power supply GND	GND
3	Set signal input +	0/4 – 20 mA or 0 – 5/10 V
4	Set signal input GND	GND

P	Air supply enter (built-in filter, filter size 5 μm)
R	Air exhaust
C	Check valve
A1	Pilot air outlet 1
A2	Pilot air outlet 2
